內(nèi)螺紋截止閥
產(chǎn)品名稱：內(nèi)螺紋截止閥
產(chǎn)品詳情
Dimensions
d | L | H | E | |
1/2″ | 15 | 63 | 85 | 70 |
3/4″ | 20 | 77 | 95 | 70 |
1″ | 25 | 89 | 104 | 80 |
11/4″ | 32 | 100 | 113 | 90 |
11/2″ | 38 | 115 | 125.5 | 90 |
2″ | 50 | 134 | 142 | 100 |

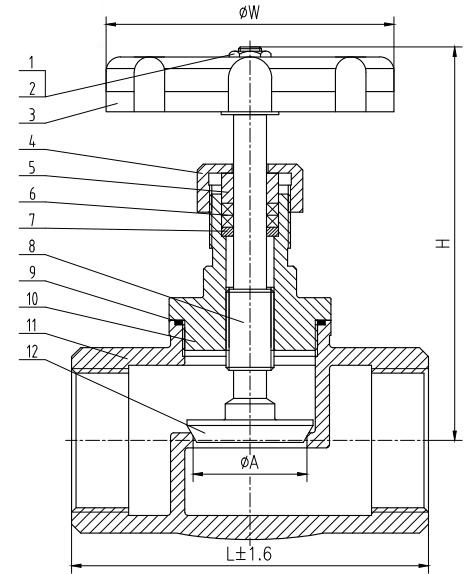

MAIN PARTS AND MATERIALS
NO. | PART NAME | MATERIAL | NO. | PART NAME | MATERIAL | |
1 | Nut | 304/316 | 7 | Washer | 304/316 | |
2 | Stem Washer | 304/316 | 8 | Stem | 304/316 | |
3 | Handle Wheel | AL | 9 | Gasket | PTFE | |
4 | Gland Ring | CF8/CF8M | 10 | Cap | CF8/CF8M | |
5 | Ring | 304/316 | 11 | Body | CF8/CF8M | |
6 | Stem Packing | PTFE | 12 | Petal | 304/316 |
